Compact Integrated Aquaponics System Specification

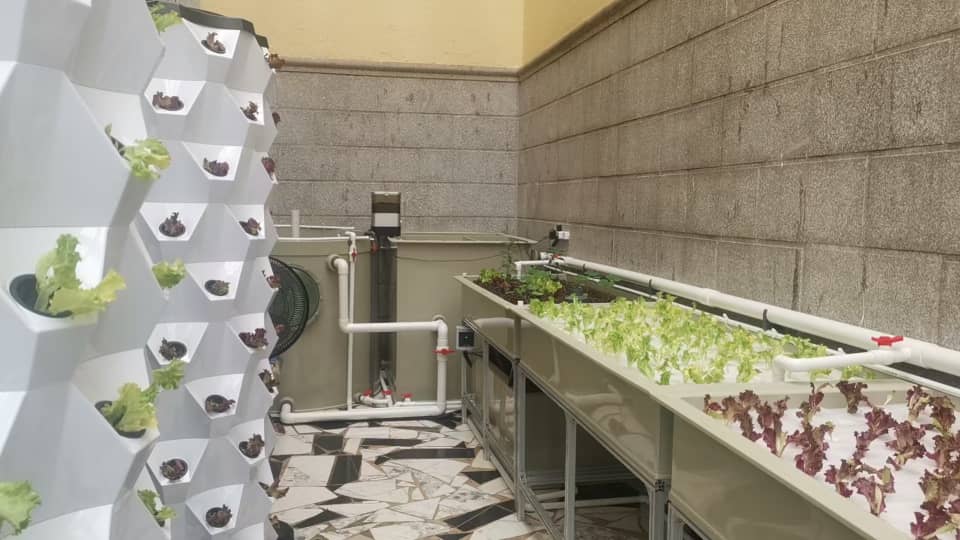

System Overview
Total Area Required: 8m x 2.7m

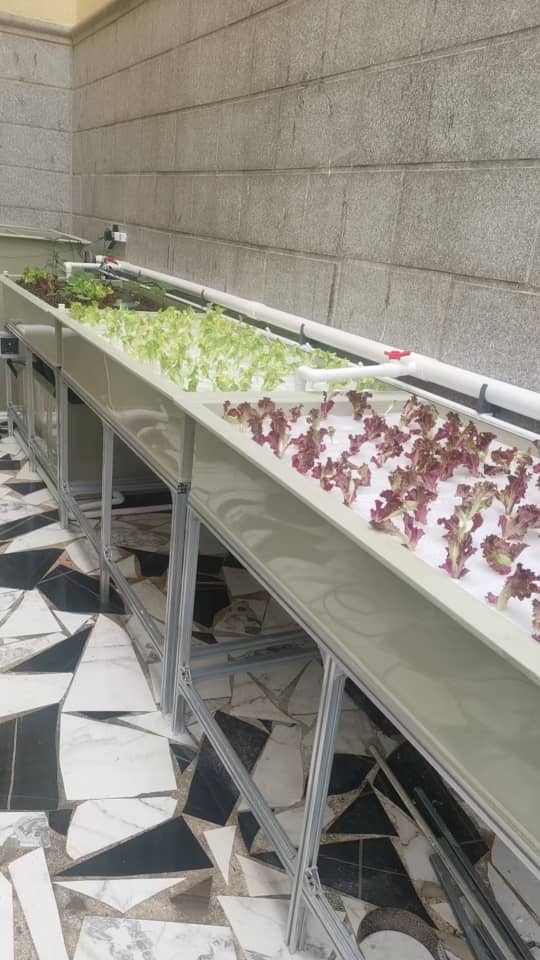

Grow Beds
Quantity: 3 Units
Size per Grow Bed: 1.5m x 0.75m x 0.25m (L x W x H)
Frame Material: Aluminum
Filtration & Water Management
Sump Filter (Under Grow Beds)
Size: 1.2m x 0.56m x 0.5m (L x W x H)
Pump: 40W water pump

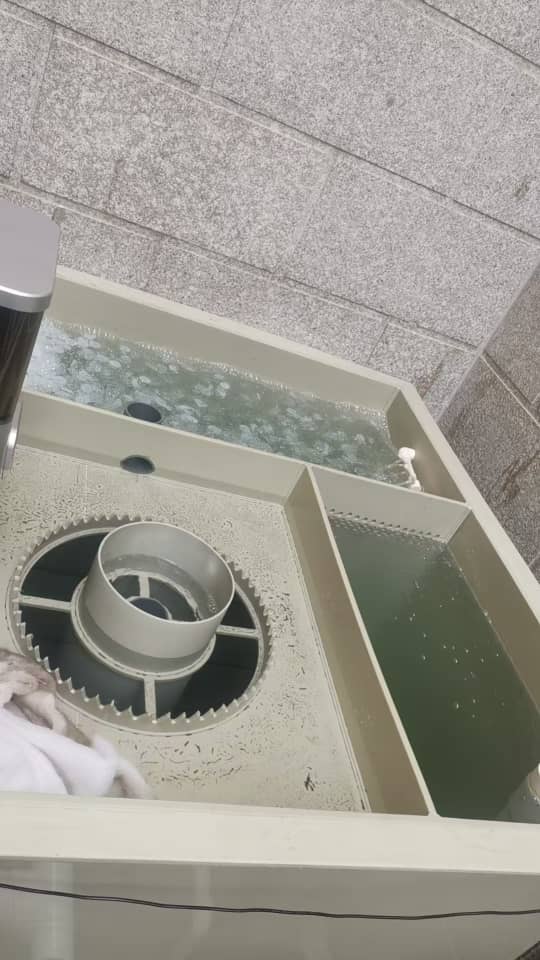

Filtration System Includes:
Biofilter
MBR (Membrane Bioreactor)
Settlement Tank for waste collection
Flow Path:
Sump ➝ Grow Beds ➝ Fish Tank ➝ Sump (Recirculating system)

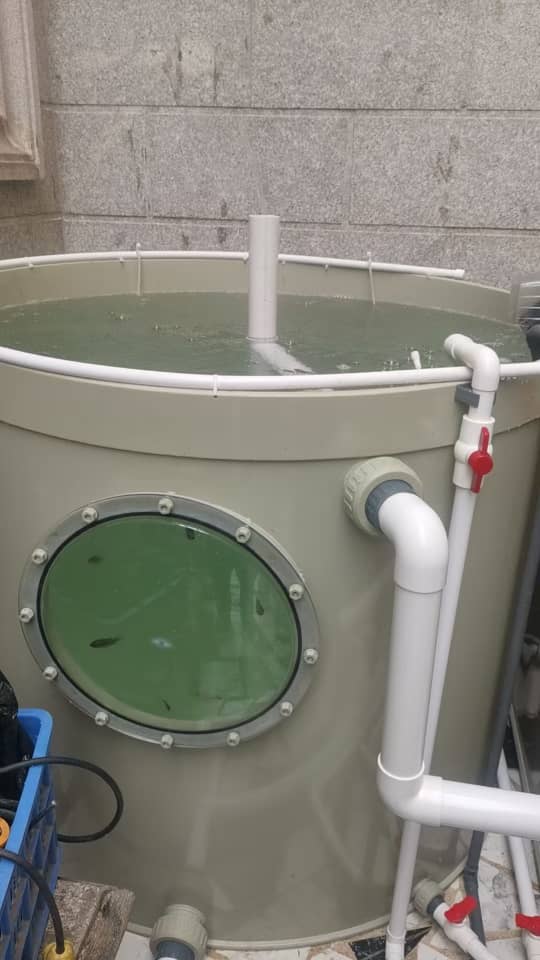

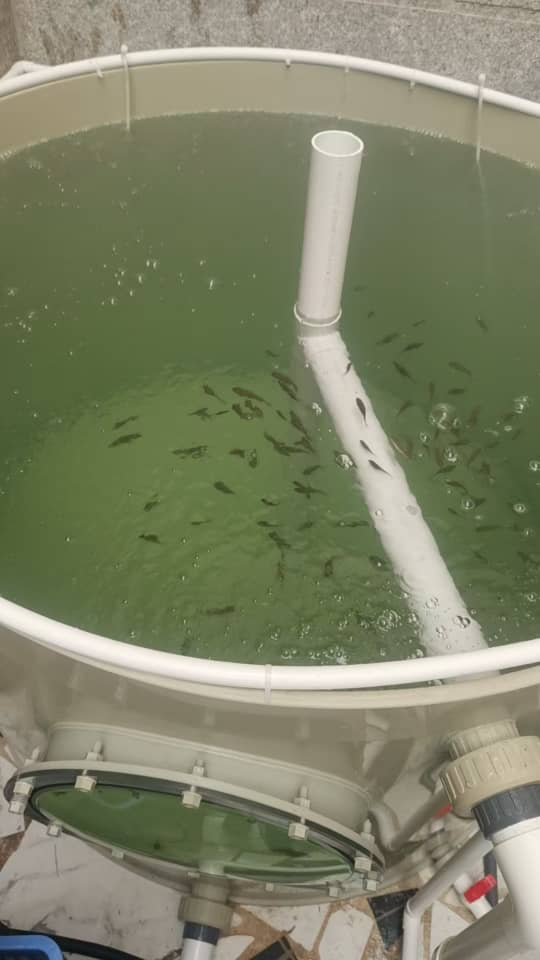

Fish Tank
Size: 1.3m diameter x 1.2m height (cylindrical)
Fish Capacity: Up to 50 kg
Planting Capacity

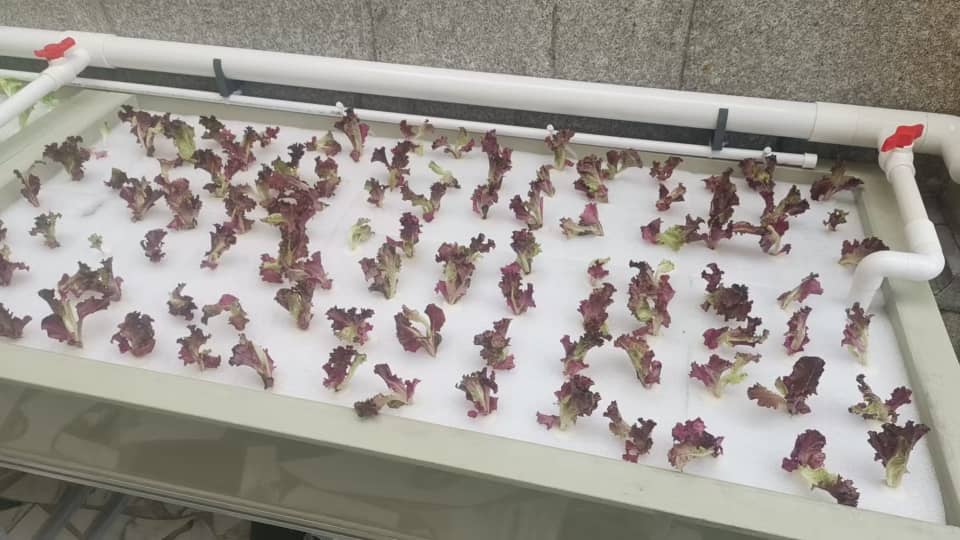

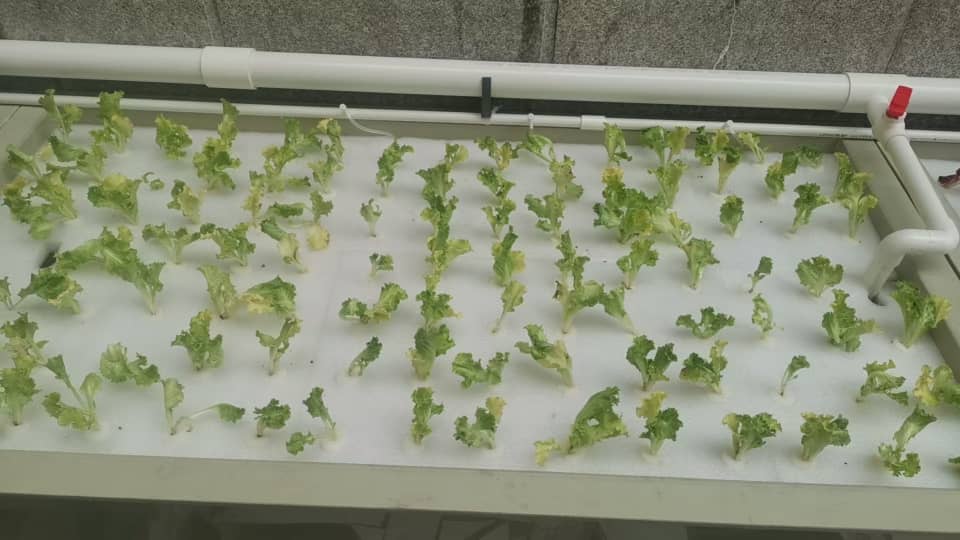

Floating Rafts. Green Leaves Approx. 210 plants

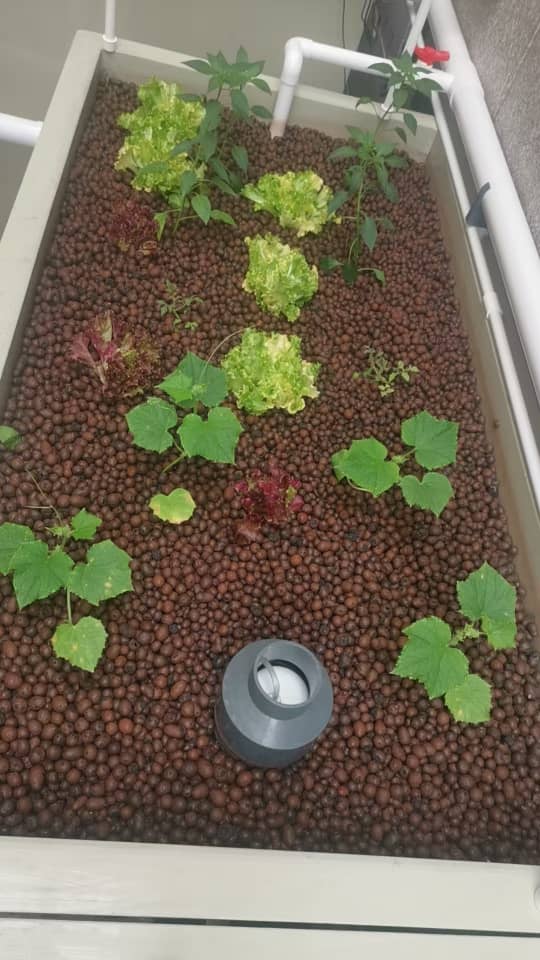

Fixed Bed (Long Leaves): ~10 plants
Equipment & Automation
Air Pump: 200W

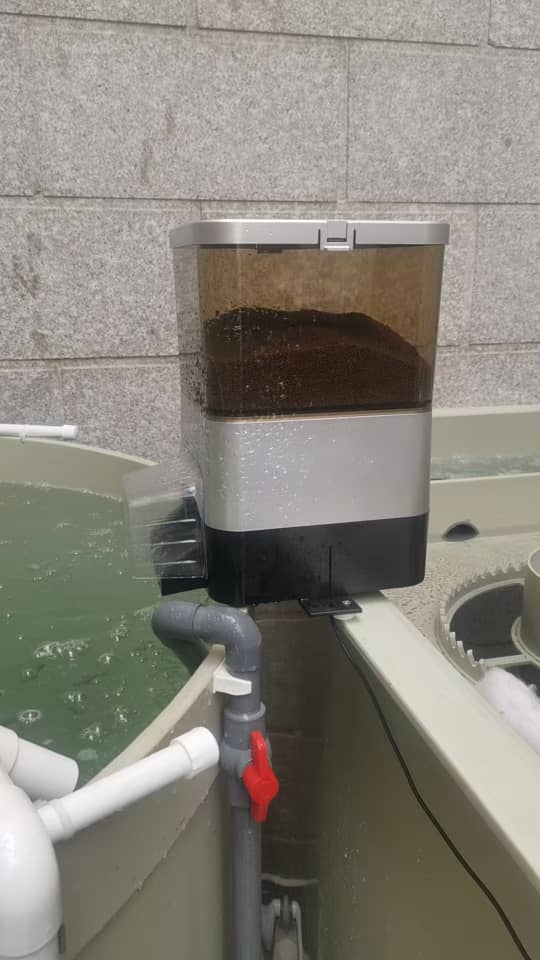

Auto Feeder: With app control

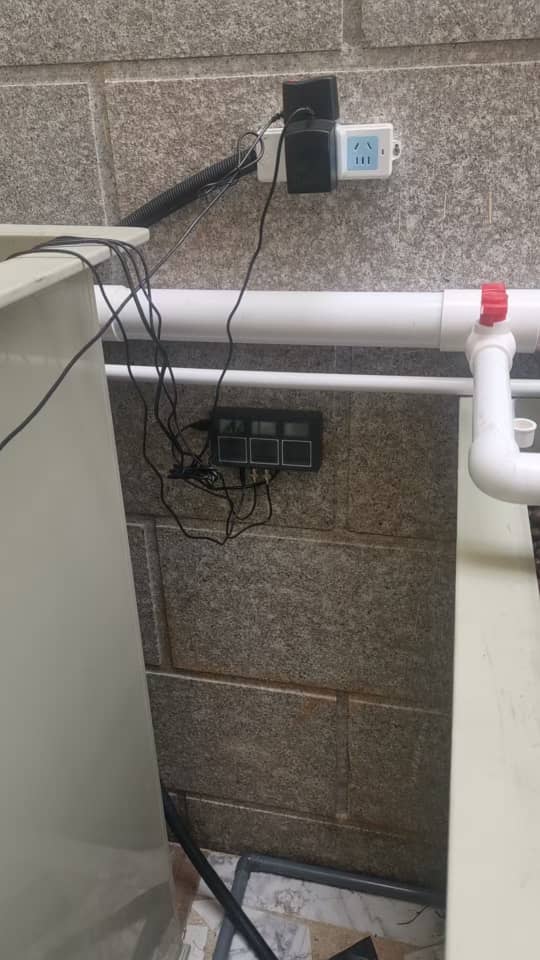

Water Quality Monitoring System (App Controlled):
pH
EC (Electrical Conductivity)
Salinity
TDS (Total Dissolved Solids)
Temperature
Free Chlorine (FC)
ORP (Oxidation-Reduction Potential)
Control Box: For integrated equipment management
Camera: Wi-Fi or SIM card enabled, app-accessible
